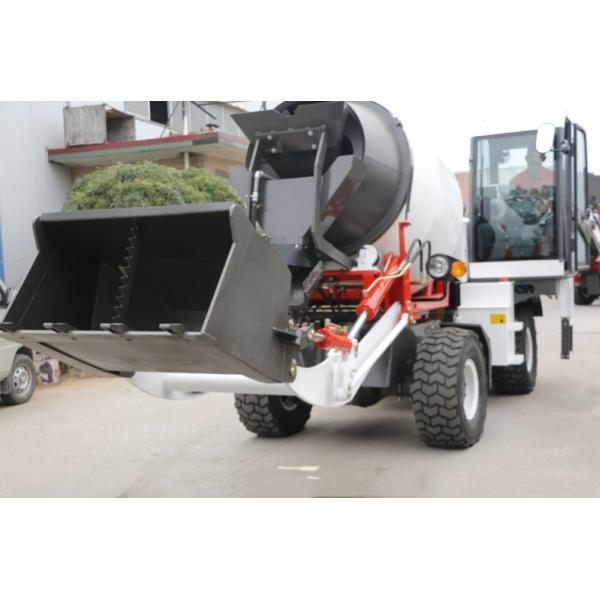

1.5 Cbm Mobile Mixer Truck Water Implement Automatic , Reverse Rotation Mobile Concrete Mixer
Introduction
The 5th generation upgraded the bucket down function from the loading mixer to truly realize the multi-purpose loading function of the machine.
At the same time, the brake caliper increased the braking performance and equipped with high-pressure car washing to keep the equipment clean,and increased the water tank to increase the output.
At this point,the 5th generation of products truly realizes the multi-purpose function of loading, stirring, transportation, car washing, etc.
Date of complete Motorcycle |
| Shape size(L*W*H)mm | 4750*2200*2850 | Maximum speed (km/h) | 30 |
| Wheelbase (mm) | 2180 | Maximum climbing degree | 90 angle |
| The quality of service | 4500kg | Tirs model | 20.5-16 |
| Driving form | Torque converter | Minimum ground clearance (mm) | 280 |
| |
| Model | yunnei 490 | Opitional | cummins |
| Power | 55KW | Rated power | |
| |
| Model | Wheel side deceleration Bridge | | |
Maintain the amout of annotation |
| Fuel oil tank | 63 liters | Oil capacity | 16 liters |
| Total capacity of hydraulic system | | | |
Parameters of hydraulic system |
| Reducer | Made in china | Moter | BM5-160 |
| Pump | FC 50/40 | | |
Water supply system parameters |
| Tank volume | 400L | Water supply | time relay |
| |
| The drum volume | 1700L | Concrete yield | 1.2cubic meters/can |
| Rotary speed of drum | 15rpm | | |
Characteristics:
- Designed By Italy,Automatic Feeling & mixing system.
- Sample Operation.
- High Active Production,Time and Labor Cost Saving.
- Mixer truck & Loading Car Combined together.
- Guarantee period 6 month.
- 180°Rotate Mixer container.
Product Picture
Certifications
FAQ
1.Q:Do you have any features difference from other suppliers?
A: Imported hydraulic press to ensure the swivel joint finish the rotation smoothly. We have the imported hydraulic motor can reach the speed at 20-25 revolutions/minute, but other supplier's can only reach at 13-15 revolutions/minute
2.Q:What is the suitable construction for the product?
A:Highway engineering in level road and mountain areas;Building; Construction sites ,etc.
3.Q: How long is your delivery time?
A: If you order within five units, the delivery time will be five to seven days. If the quantity is more than 5 units, then the delivery time will be ten to fifteen days.
4.Do you provide free spare parts?
A: Yes, we provide free spare parts within the warranty period.
5.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
